COMPRESSED AIR BALL FLOAT TRAPS (CARBON STEEL) DN25

admin

Model No : FA32
Description
FA32 series compressed air float traps are specially designed for draining water from high pressure compressed air and gas lines.
Applications on aftercoolers, separators and compressed air and gas mains.
An air balance pipe must be fitted allowing the air trapped in the trap body to escape, avoiding obstructing of condensate flow.
Connections are flanged or female screwed.

MAIN FEATURES

Modulating discharge.
Unaffected by sudden or wide load and pressure changes.

OPTIONS:

Internal strainer (only on horizontal
models).
Equalizing and drain plug on body.
Lifting lever.

USE:

Compressed air and non corrosive
gas compatible with the construction.

AVAILABLE MODELS: FA 32-21, FA32-32.

SIZES: DN 1” – DN 25.

CONNECTIONS:
Female screwed ISO 7/1Rp(BS21)
Flanged EN 1092-1 PN40 or ANSI.
Special flanges upon request.

INSTALLATION:
Horizontal or vertical installation

Steam Injections

July 27, 2017

STEAM INJECTION

admin

Model No : SI 20
Description
The SI20 series steam injectors from ADCA are injection
condensers. They ensure low noise and vibration and
rapid heating of still or flowing fluids in basins and
vessels due to direct steam injection.
Steam enters through the inlet housing, passes along the
centre of the heater, through holes in the inner rings,
through spaces between the element plates where it
condensates under light load and partly condensates
under heavy load to be discharged through the serrated
periphery of the element plates. Under heavy load if any
steam pass through the periphery of the element plates,
will do so in very small jets and will condensate in the
surrounding liquid with very little noise and vibration.
Connections are female screwed.

MAIN FEATURES

Quiet operation.
Corrosion-resistant.
No moving parts.

OPTIONS:
Complete system including vacuum
breaker and self operated controller.
Different capacities and design available
under request.

USE:
Direct steam injection heating systems.
See IMI installation and maintenance
instructions.

AVAILABLE
MODELS:

SI 20-4; SI 20-5,5; SI 20-7; SI 20-8,5

SIZES: 3/4″

CONNECTIONS: Female screwed ISO 7/1 Rp (BS21)

INSTALLATION: Horizontal or vertical installation.

LIMITING CONDITIONS:

PMO: Max. operating pressure 8,5 bar

TMO: Max. operating temperature 180 ºC

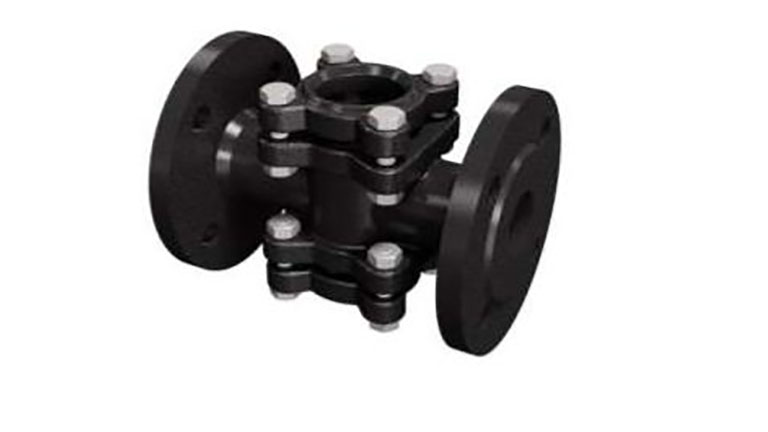

Double Window Sight Glass

July 27, 2017

WINDOW SIGHT GLASS

admin

Model No : DW12G–DW12SS
Description
For monitoring the right operation of a steam trap to avoid leakage of live steam and consequently big energy losses, a sight glass is recommended to be installed downstream the steam trap. Double window DW sight glass, has been designed for this particular application.
Connections are flanged.

OPTIONS: Mica shield discs

USE: Condensate pipes downstream steam
traps.

AVAILABLE MODELS:
DW12G – PN16 Cast iron
DW12SS – PN25 Stainless steel
DN15 to DN150

SIZES: Flanged EN 1092-1/-2 PN16-PN25

CONNECTIONS: Horizontal or vertical installation

INSTALLATION:
See IMI installation and maintenance
instructions.

Double Window Sight Glass

July 27, 2017

DOUBLE WINDOW SIGHT GLASS (BRONZE)

admin

Model No : DW12
Description
For monitoring the right operation of a steam trap to avoid leakage of live steam and consequently big energy losses, a sight glass is recommended to be installed downstream of the steam trap.
Double window DW sight glass, has been designed for this particular application.
Connections are female screwed.

OPTIONS: Mica shield discs for steam use

USE: Condensate pipes downstream steam
traps.

AVAILABLE MODELS: DW 12

SIZES: DN 11/4” to DN 2”

CONNECTIONS: Female screwed ISO 7/1Rp(BS21).

INSTALLATION: Horizontal or vertical installation.
See IMI, installation and maintenance
instructions.

Double Window Sight Glass

July 27, 2017

DOUBLE WINDOW SIGHT GLASS (STAINLESS STEEL)

admin

Model No : DW40SS
Description
For monitoring the right operation of a steam trap to avoid leakage of live steam and consequently big energy losses, a sight glass is recommended to be installed downstream of the steam trap.
Double window DW sight glass, has been designed for this particular application.
Connections are female screwed or flanged.

OPTIONS: Mica shield discs for steam use

USE: Condensate pipes downstream steam
traps.

AVAILABLE MODELS: DW 40 SS

SIZES: DN ½” to DN 2“; DN 15 to DN 50

CONNECTIONS:
Female screwed ISO 7/1Rp(BS21).
NPT (ANSI B1.20.1)
Flanged EN 1092-1 or ANSI

INSTALLATION:
Horizontal or vertical installation.
See IMI, installation and maintenance
instructions.

Bellows Sealed Stop Valves

July 27, 2017

BELLOWS SEALED STOP VALVES

admin

Model No : VF16–VF17–VF18 (DN15-250)
Description
VF series are streamlined flow valves with bellows,
inside screw and maintenance free.
They are specially recommended for steam, gas, liquid,
condensate, thermal oil and water systems.
Connections are flanged.

MAIN FEATURES

Double wall bellows specially designed for high
durability.
Maintenance free
Secondary safety sealing

OPTIONS: Parabolic plug PTFE disc sealing (max.180ºC)

USE: Steam, gases and liquids compatible with
the construction.

AVAILABLE
MODELS:

VF16 – PN16 – Cast iron

VF17 – PN16 – Nodular cast iron

VF18 – PN25 – Nodular cast iron

SIZES: DN15 to DN 250

CONNECTIONS: Flanged EN1092-2 PN16-PN25

INSTALLATION: See IMI, installation and maintenanceinstructions.

Bellows Sealed Stop Valves

July 27, 2017

BELLOWS SEALED STOP VALVES

admin

Model No : VF40 (DN15 – 150)
Description
VF40 series are streamlined flow valves with bellows,
outside screw no rising stem, maintenance free.
They are specially recommended for steam, gas, liquid,
condensate, thermal oil and water systems.
Connections are flanged.

MAIN FEATURES

Double wall bellows specially designed for high
durability.
Position indicator
Lubricator
Maintenance free
Secondary safety sealing

OPTIONS: Parabolic plug

USE: Steam, gases and liquids compatible with
the construction.

AVAILABLE
MODELS: VF40 – Cast steel

RATING: PN40

SIZES: DN15 to DN 150

CONNECTIONS:
Flanged EN1092-1 PN40

INSTALLATION: See IMI, installation and maintenance instructions

Bellows Sealed Stop Valves

July 27, 2017

BELLOWS SEALED STOP VALVES

admin

Model No : VF20 (DN15 – 200)
Description
VF20 series are streamlined flow valves with bellows,
outside screw no rising stem, maintenance free.
They are specially recommended for steam, gas, liquid,
condensate, thermal oil and water systems.
Connections are flanged.

MAIN FEATURES

Double wall bellows specially designed for high
durability.
Position indicator
Lubricator
Maintenance free
Secondary safety sealing

OPTIONS: Parabolic plug
PTFE disc sealing (max.180ºC)

USE: Steam, gases and liquids compatible with
the construction.

AVAILABLE MODELS: VF20 – Cast iron

RATING: PN16

SIZES: DN15 to DN 200

CONNECTIONS: Flanged EN1092-2 PN16

INSTALLATION: See IMI, installation and maintenance
instructions.

Pressure Gauge

July 27, 2017

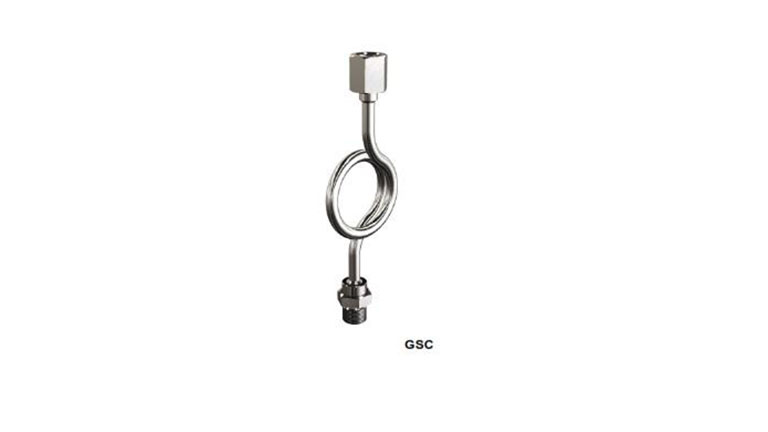

GAUGE SIPHONS

admin

Model No : GSC-GSU
Description
The GS series pressure gauge siphons have been designed to protect pressure gauges from the effect of rapid pressure surges and hot pressure fluids.
They operate as cooling elements for liquids and gases in pressure measuring devices.
An isolation pressure gauge cock is recommended to be installed in combination with gauge siphons.

MAIN FEATURES
Complete stainless steel construction

OPTIONS: Different kind of connections.

USE: Pressure gauge protection on steam, water,
compressed air and other fluids systems
compatible with the construction.

AVAILABLE
MODELS: GSC-40; GSU-40 ; GSUL-40

SIZES : ½” (male x female)

CONNECTIONS: Female screwed ISO7/1Rp(BS21)

INSTALLATION: GSC – vertical: GSU – horizontal.

LIMITINNG
CONDITIONS: 40 bar at 300 ºC; 110 bar at 110 ºC

WEIGHT: 0,34 Kgs

MATERIALS:
Coil – AISI 316L / 1.4404
Connections – AISI 304 / 1.4301

Pressure Gauge

July 27, 2017

LEVEL GAUGE

admin

Model No : LGC135I
Description
The LGC level gauge valve was specially conceived to supervise the functioning and visualization of liquid level in pressure operated condensate pumps, reservoirs and other equipment whenever compatible with operation boundaries.
May be supplied either with glass or without.

MAIN FEATURES
Stainless steel construction

AVAILABLE
MODELS: LGC 135I

CONNECTIONS : DN ½”

LIMITING CONDITIONS :
Working pressure: 12 bar at 200ºC
