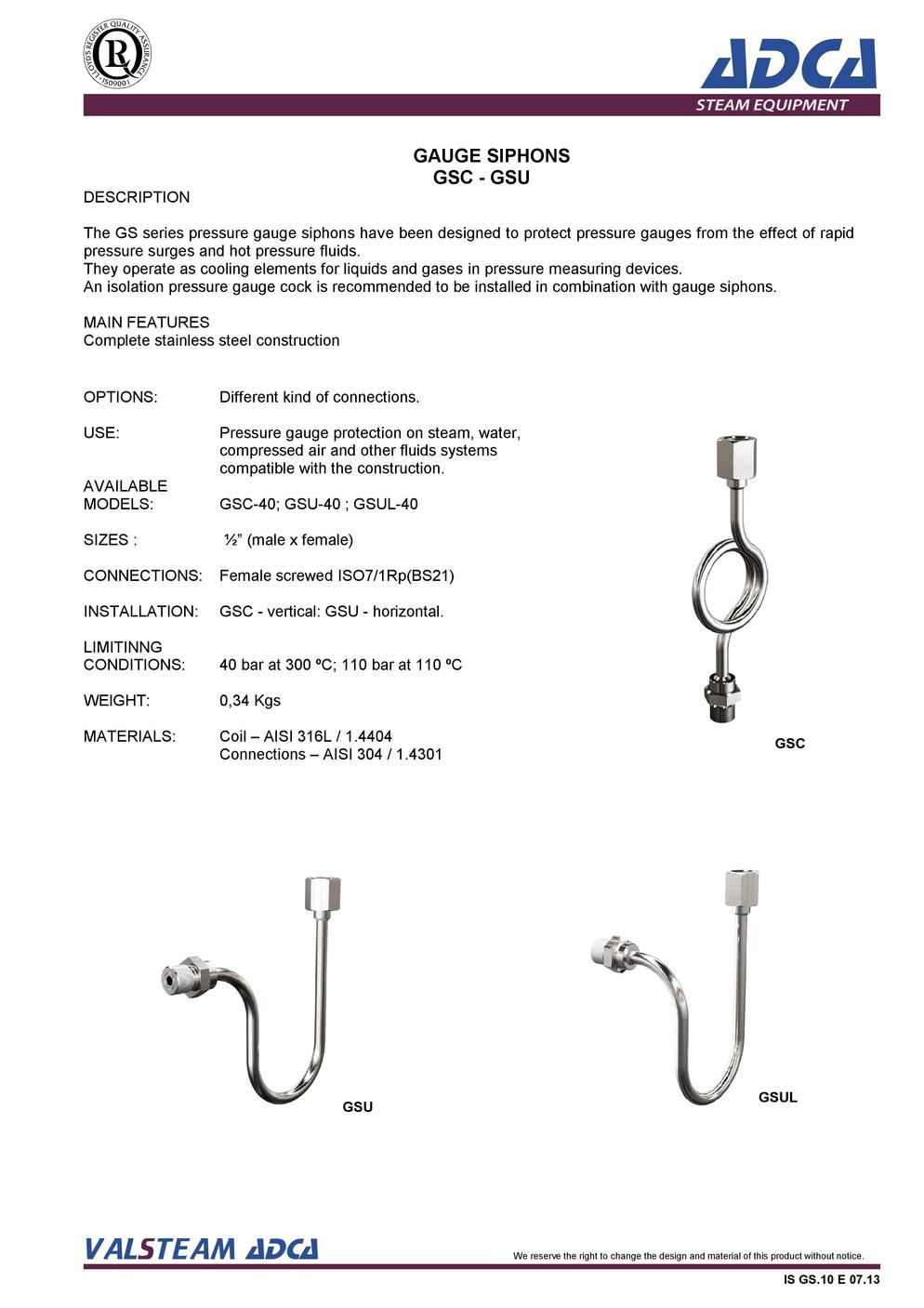

GAUGE SIPHONS

Model No : GSC-GSU
Description
The GS series pressure gauge siphons have been designed to protect pressure gauges from the effect of rapid pressure surges and hot pressure fluids.
They operate as cooling elements for liquids and gases in pressure measuring devices.
An isolation pressure gauge cock is recommended to be installed in combination with gauge siphons.

MAIN FEATURES
Complete stainless steel construction

OPTIONS: Different kind of connections.

USE: Pressure gauge protection on steam, water,
compressed air and other fluids systems
compatible with the construction.

AVAILABLE
MODELS: GSC-40; GSU-40 ; GSUL-40

SIZES : ½” (male x female)

CONNECTIONS: Female screwed ISO7/1Rp(BS21)

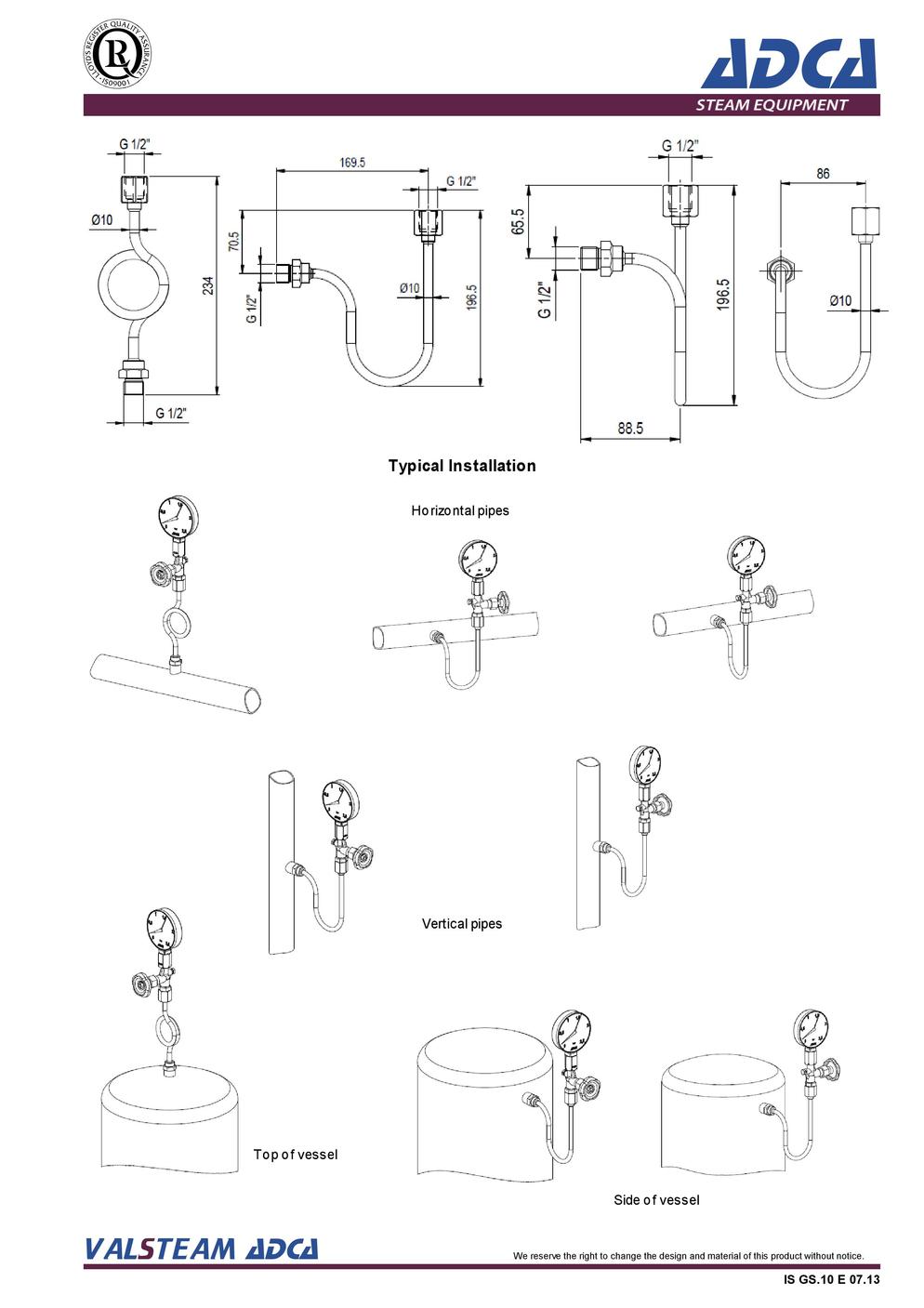

INSTALLATION: GSC – vertical: GSU – horizontal.

LIMITINNG
CONDITIONS: 40 bar at 300 ºC; 110 bar at 110 ºC

WEIGHT: 0,34 Kgs

MATERIALS:
Coil – AISI 316L / 1.4404
Connections – AISI 304 / 1.4301
