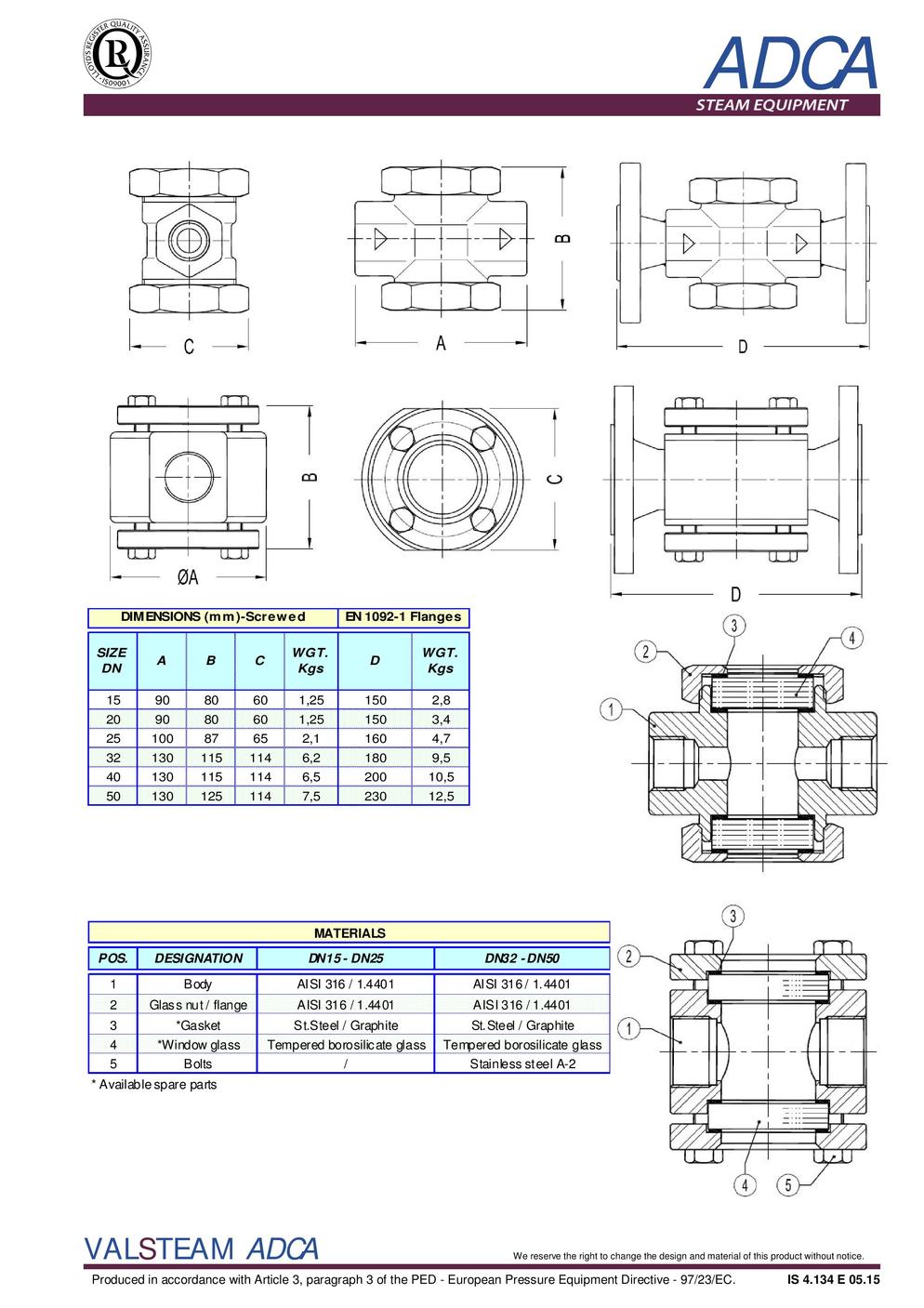

DOUBLE WINDOW SIGHT GLASS (STAINLESS STEEL)

Model No : DW40SS
Description
For monitoring the right operation of a steam trap to avoid leakage of live steam and consequently big energy losses, a sight glass is recommended to be installed downstream of the steam trap.
Double window DW sight glass, has been designed for this particular application.
Connections are female screwed or flanged.

OPTIONS: Mica shield discs for steam use

USE: Condensate pipes downstream steam
traps.

AVAILABLE MODELS: DW 40 SS

SIZES: DN ½” to DN 2“; DN 15 to DN 50

CONNECTIONS:
Female screwed ISO 7/1Rp(BS21).
NPT (ANSI B1.20.1)
Flanged EN 1092-1 or ANSI

INSTALLATION:
Horizontal or vertical installation.
See IMI, installation and maintenance
instructions.
