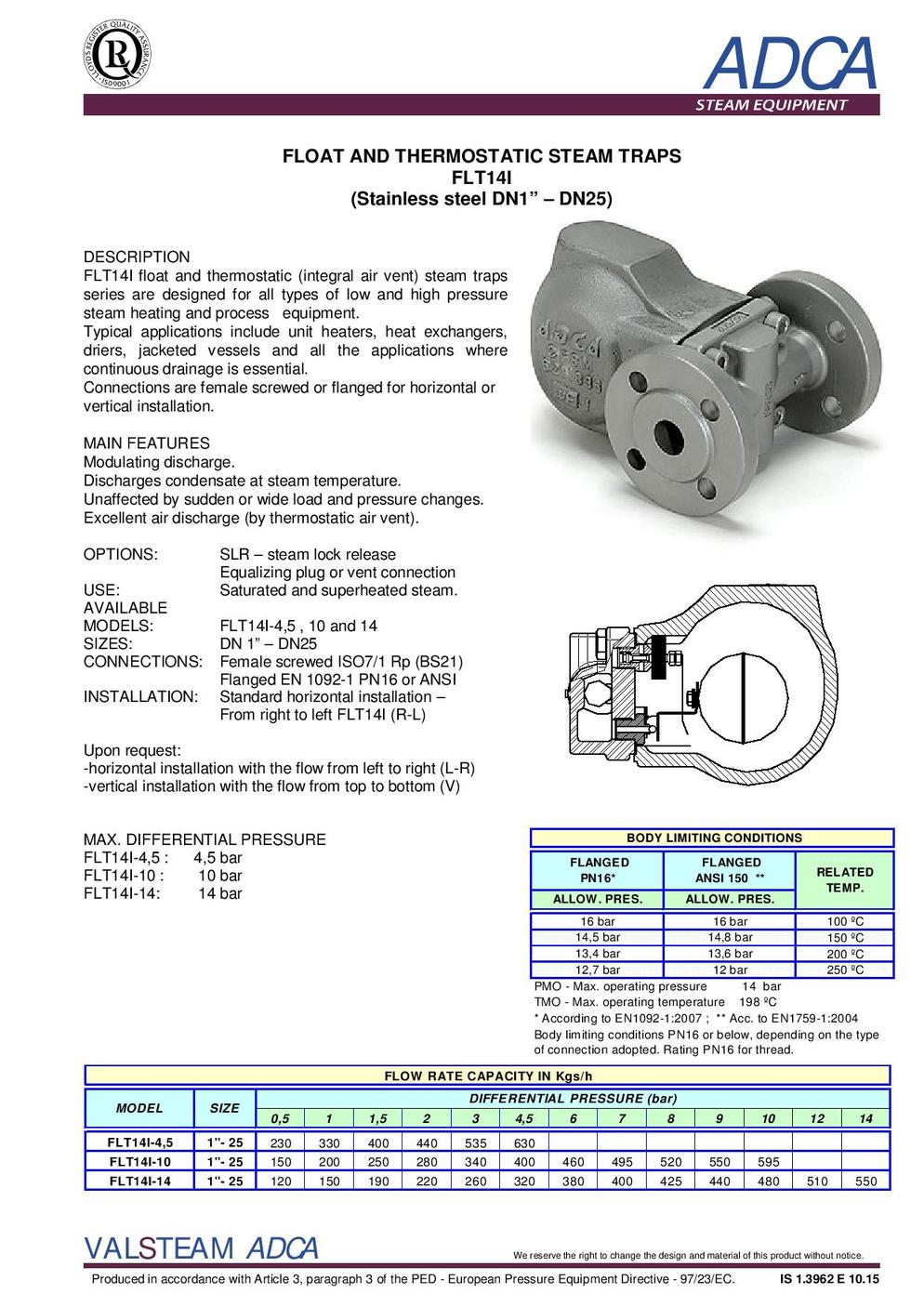

Model No : FLT14I
FLT14I float and thermostatic (integral air vent) steam traps series are designed for all types of low and high pressure steam heating and process equipment.
Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.
Connections are female screwed or flanged for horizontal or vertical installation.
Discharges condensate at steam temperature.
Unaffected by sudden or wide load and pressure changes.
Excellent air discharge (by thermostatic air vent).
OPTIONS: SLR – steam lock release Equalizing plug or vent connection
USE: Saturated and superheated steam
AVAILABLE MODELS: FLT14I-4,5 , 10 and 14
SIZES: DN 1” – DN25
CONNECTIONS: Female screwed ISO7/1 Rp (BS21)
INSTALLATION: Flanged EN 1092-1 PN16 or ANStandard horizontal installation –From right to left FLT14I (R-L)
-horizontal installation with the flow from left to right (L-R)
-vertical installation with the flow from top to bottom (V)
MAX. DIFFERENTIAL PRESSURE
FLT14I-4,5 : 4,5 bar
FLT14I-10 : 10 bar
FLT14I-14: 14 bar
