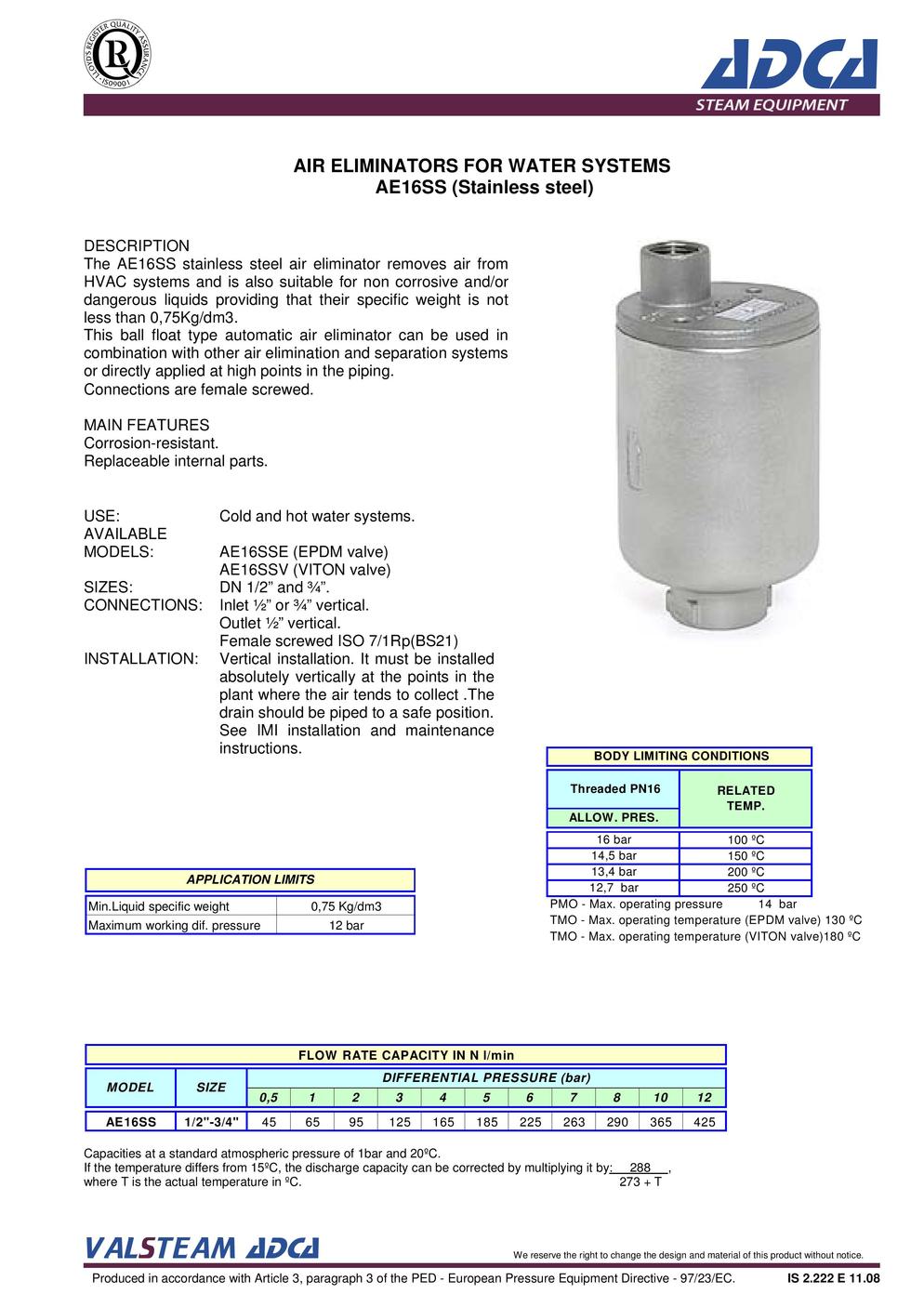

AIR ELIMINATIONS-WATER SYSTEMS (STAINLESS STEEL)

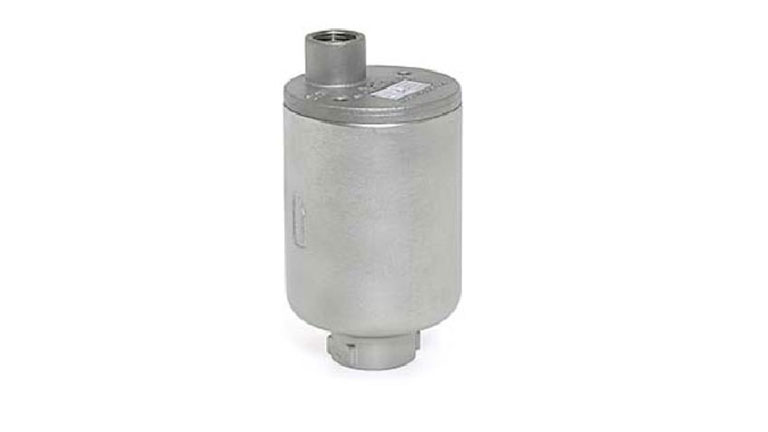

Model No : AE16SS
Description
The AE16SS stainless steel air eliminator removes air from HVAC systems and is also suitable for non corrosive and/or dangerous liquids providing that their specific weight is not less than 0,75Kg/dm3.
This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping. Connections are female screwed.
MAIN FEATURES
Corrosion-resistant.
Replaceable internal parts.
USE: Cold and hot water systems.
AVAILABLE MODELS:
AE16SSE (EPDM valve)
AE16SSV (VITON valve)
SIZES: DN 1/2” and ¾”.
CONNECTIONS:
Inlet ½” or ¾” vertical.
Outlet ½” vertical.
Female screwed ISO 7/1Rp(BS21)
INSTALLATION:
Vertical installation. It must be installed
absolutely vertically at the points in the
plant where the air tends to collect .The
drain should be piped to a safe position.
See IMI installation and maintenance
instructions.
