Compressed Air Ball Float Traps

COMPRESSED AIR BALL FLOAT TRAPS (DN15-20)

Model No : FA17/G
Description
FA 17/G is a fully automatic ball float trap extremely compacin dimension and light in weight, specially designed fodraining water from compressed air lines.
Applications on aftercoolers, separators and compressed amains.
Connections are female screwed or flanged.

MAIN FEATURES

Modulating discharge.
Unaffected by sudden or wide load and pressure changes.

OPTIONS: Horizontal reversible inlet connections.

USE:

Compressed air and non corrosive gas,
compatible with the construction.

AVAILABLE MODELS: FA 17/G

SIZES: DN ½” – 3/4”; DN 15 – DN 20.

CONNECTIONS:

Female screwed ISO 7/1Rp(BS21)
Flanged EN 1092-2 PN16 or ANSI

INSTALLATION:

Vertical installation.
See IMI installation and maintenance
instructions.

COMPRESSED AIR BALL FLOAT TRAPS (DN40 – DN50)

Model No : FA17/G
Description
FA17/G is a fully automatic ball float trap extremely compact in dimension and light in weight, specially designed for draining water from compressed air lines.
Applications on aftercoolers, separators and compressed air mains.
Connections are screwed or flanged.

MAIN FEATURES

Modulating discharge.
Unaffected by sudden or wide load and pressure changes.

OPTIONS: Horizontal reversible inlet connections.

USE:
Compressed air and non corrosive gas,
compatible with the construction.

AVAILABLE MODELS: FA 17 G

SIZES: DN 11/2” -2”; DN 40 – DN 50.

CONNECTIONS:
Female screwed ISO 7/1 Rp (BS21)
Flanged EN 1092-2 PN16 or ANSI

INSTALLATION:
Standard horizontal installation-flow
from right to left (R-L).
Vertical installation with the flow from
top to bottom (V).
See IMI installation and maintenance
instructions.

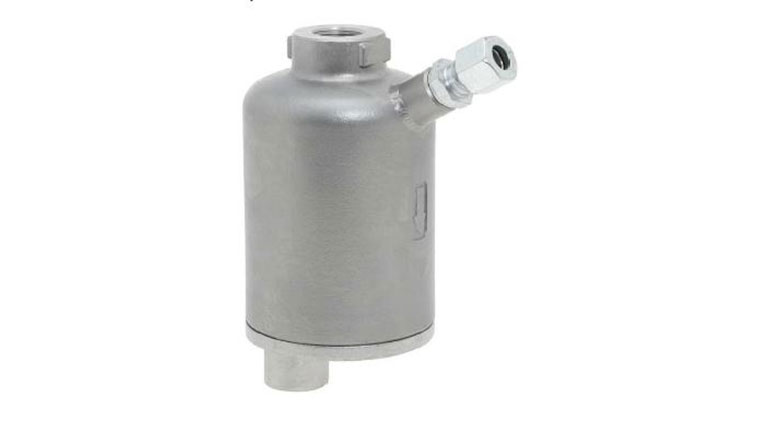

COMPRESSED AIR BALL FLOAT TRAPS (STAINLESS STEEL)(DN15-20)

Model No : FA16SS
Description
FA16SS is a fully automatic ball float trap extremely compact in dimension and light in weight, specially designed for draining water from compressed air lines.
Applications on after coolers, separators and compressed air mains.
Connections are female screwed.

MAIN FEATURES

Corrosion-resistant.
Replaceable internal parts.
Modulating discharge
Unaffected by sudden or wide load and pressure changes.

OPTIONS:
Compression fitting
Hand purging valve.

USE:
Compressed air and non corrosive
gas compatible with the construction.

AVAILABLE MODELS: FA16SS

SIZES: DN 1/2” and ¾”.

CONNECTIONS:
Inlet ½” or ¾” vertical (top to bottom)
Outlet ½” vertical.
Female screwed ISO 7/1Rp(BS21)

INSTALLATION:
Vertical installation. It must be installed
absolutely vertically at the points in the
plant where the condensate tends to
collect .
The drain should be piped to a safe
position.
See IMI installation and maintenance
instructions.

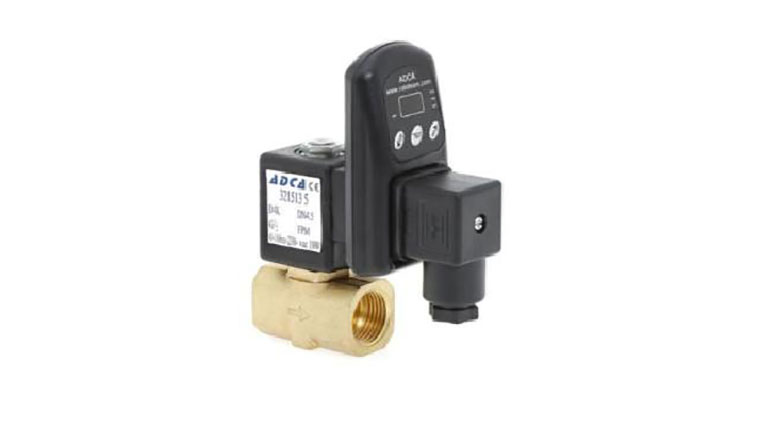

COMPRESSED AIR AUTOMATIC DRAIN VALVES

Model No : CAD
Description
CAD – Compressed Air Automatic Drain Valve consists ofa solid-state timer coupled to a solenoid valve.
The CAD is specially designed for automatic draining offilters, separators, aftercoolers, dryers, receivers, driplegs and other compressed air system componentswhere condensate and contaminants collect. The draining interval and discharge time can be adjustedaccording to the requirements.
Valve connections are female screwed.
MAIN FEATURES
Easy to read and set time for on/off periods.
Adjustable interval and discharge times.
Manual test switch.
Simple to install.
OPTIONS: Stainless steel valve body
USE:
Compressed air, oil, gases and liquidscompatible with the materials of construction.
AVAILABLE MODELS: CAD
SIZES: DN 3/8” and 1/ 2″
CONNECTIONS: Female screwed ISO 7/1 Rp (BS21)
INSTALLATION: In any position.

COMPRESSED AIR BALL FLOAT TRAPS (STAINLESS STEEL)(DN15-20)

Model No : FA21SS
Description
FA21SS series compressed air float traps are speciallydesigned for draining water from high pressure compressedair and gas lines.
Applications on aftercoolers, separators and compressed air and gas mains.
An air balance pipe must be fitted allowing the air trapped inthe trap body to escape, avoiding obstructing of condensate flow.
Connections are flanged or female screwed.

MAIN FEATURES

Modulating discharge.
Unaffected by sudden or wide load and pressure changes.

OPTIONS: Equalizing and drain plug on body.
Lifting lever.

USE: Compressed air and non corrosive
gas compatible with the construction.

AVAILABLE
MODELS: FA 21SS-21.

SIZES: DN 1/2” – 1”, DN 15 – DN 25.

CONNECTIONS:
Female screwed ISO 7/1Rp(BS21)
Flanged EN 1092-1 PN40 or ANSI.

INSTALLATION
Horizontal or vertical installation.

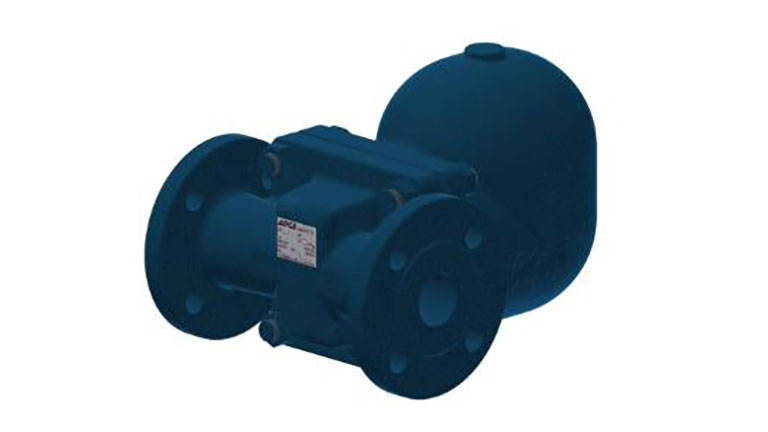

COMPRESSED AIR BALL FLOAT TRAPS (CARBON STEEL) DN25

Model No : FA32
Description
FA32 series compressed air float traps are specially designed for draining water from high pressure compressed air and gas lines.
Applications on aftercoolers, separators and compressed air and gas mains.
An air balance pipe must be fitted allowing the air trapped in the trap body to escape, avoiding obstructing of condensate flow.
Connections are flanged or female screwed.

MAIN FEATURES

Modulating discharge.
Unaffected by sudden or wide load and pressure changes.

OPTIONS:

Internal strainer (only on horizontal
models).
Equalizing and drain plug on body.
Lifting lever.

USE:

Compressed air and non corrosive
gas compatible with the construction.

AVAILABLE MODELS: FA 32-21, FA32-32.

SIZES: DN 1” – DN 25.

CONNECTIONS:
Female screwed ISO 7/1Rp(BS21)
Flanged EN 1092-1 PN40 or ANSI.
Special flanges upon request.

INSTALLATION:
Horizontal or vertical installation
