The ADCA PS45 series pressure sustaining valves are single seat bellows sealed controllers, operating without auxiliary energy, designed for use on steam, compressed air, industrial inert gases and liquids compatible with the construction.
They are particularly suitable for sustaining steam pressure in all energy and process systems where upstream pressures should be kept constant.
The ADCA PRV30 series direct acting, spring-loaded diaphragm sensing, balanced valve pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the materials of construction .
They are suitable for pressure reducing stations at the point of use on laundry machines, dyeing, food
industries, sterilizers, etc.
The ADCA P7 series direct acting, spring-loaded diaphragm sensing, pressure reducing valves, are designed for use on steam and compressed air and other gases compatible with the materials of construction .
They are suitable for pressure reducing stations where very small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.
The ADCA PRV47 pilot operated pressure reducing valves are designed for use on steam, compressed air, nitrogen and other gases compatible with the construction and they can be installed on pressure reducing stations throughout all industries.
Connections are flanged or threaded.
The ADCA PRV25/2S series direct acting pressure
reducing valves are designed for use on steam,
compressed air and other gases.
They are suitable for reducing steam pressure at the
point of use on laundry machines, dyeing, food
industries, sterilizers, etc.
Connections are female screwed or flanged.
MAIN FEATURES
Compact design.
Bellows specially designed for high durability.
Built-in strainer.
OPTIONS:
Regulating screw with top cap.
USE: Saturated steam, compressed air and other
gases compatible with the construction.
AVAILABLE MODELS:
PRV25/2S – metal to metal seating
PRV25/2SG – soft valve
PRW25/2S – soft valve balanced
RECOMMENDED APPLICATIONS :
PRV25/2S – steam and compressed air
PRV25/2SG – steam and compresswhere tight off is required
PRW25/2S – water, compressed air
SIZES:
CONNECTIONS:
INSTALLATION:
Regulating screw with top cap.
Saturated steam, compressed air and other
gases compatible with the construction.
PRV25/2S – metal to metal seating
PRV25/2SG – soft valve
PRW25/2S – soft valve balanced
PRV25/2S – steam and compressed air
PRV25/2SG – steam and compressed air
where tight off is required
PRW25/2S – water, compressed air
SIZES: ½”, ¾”, 1”; DN15, DN20 and DN25.
Female screwed ISO7/1Rp(BS 21) .
Flanged EN 1092-1 PN40 or ANSI.
Horizontal installation.
An “Y” strainer should be provided
upstream the valve.
See IMI, installation and maintenance
instructions

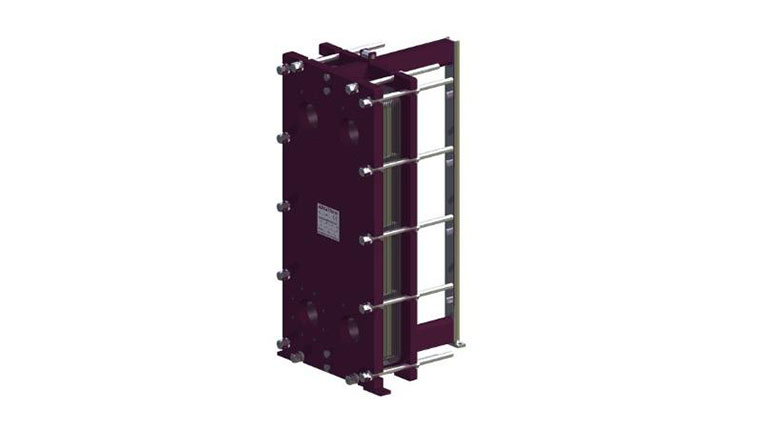

The ADCATHERM PAT – plate heat exchangers (gasketed and bolted), consists of varying number of pressed plates, clamped together between a fixed plate and a movable plate, all assembled in a metal frame.
The SG20 water-saving gun is specially recommended to be used along with the Adcamix MX20 steam to water mixers. By using this gun, water and energy costs can be considerably reduced and it also contributes to the environment protection avoiding the use of chemicals in the cleaning process. The valve is opened and closed by operating the lever which regulates the flow from a mist to a concentrated jet.
The lock catch facilitates the continuous operation. The valve is designed for industrial use, it is extremely robust. It is protected against shock, heat and cold by caustic and acid-resistant rubber cladding.

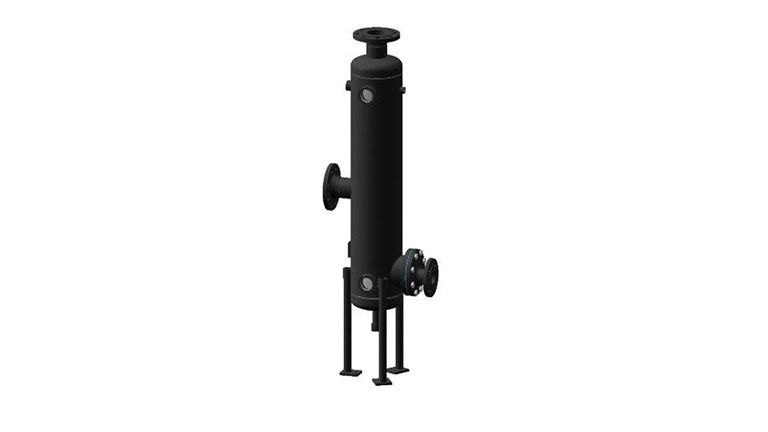

The flash vessel is the main component in any flash
recovery system. It can be used in all steam plants where high pressure condensate is reduced to a lower pressure, so that flash steam is formed by re-evaporation. This steam can be used in low pressure process or heating equipments. Connections are flanged or screwed on request.
