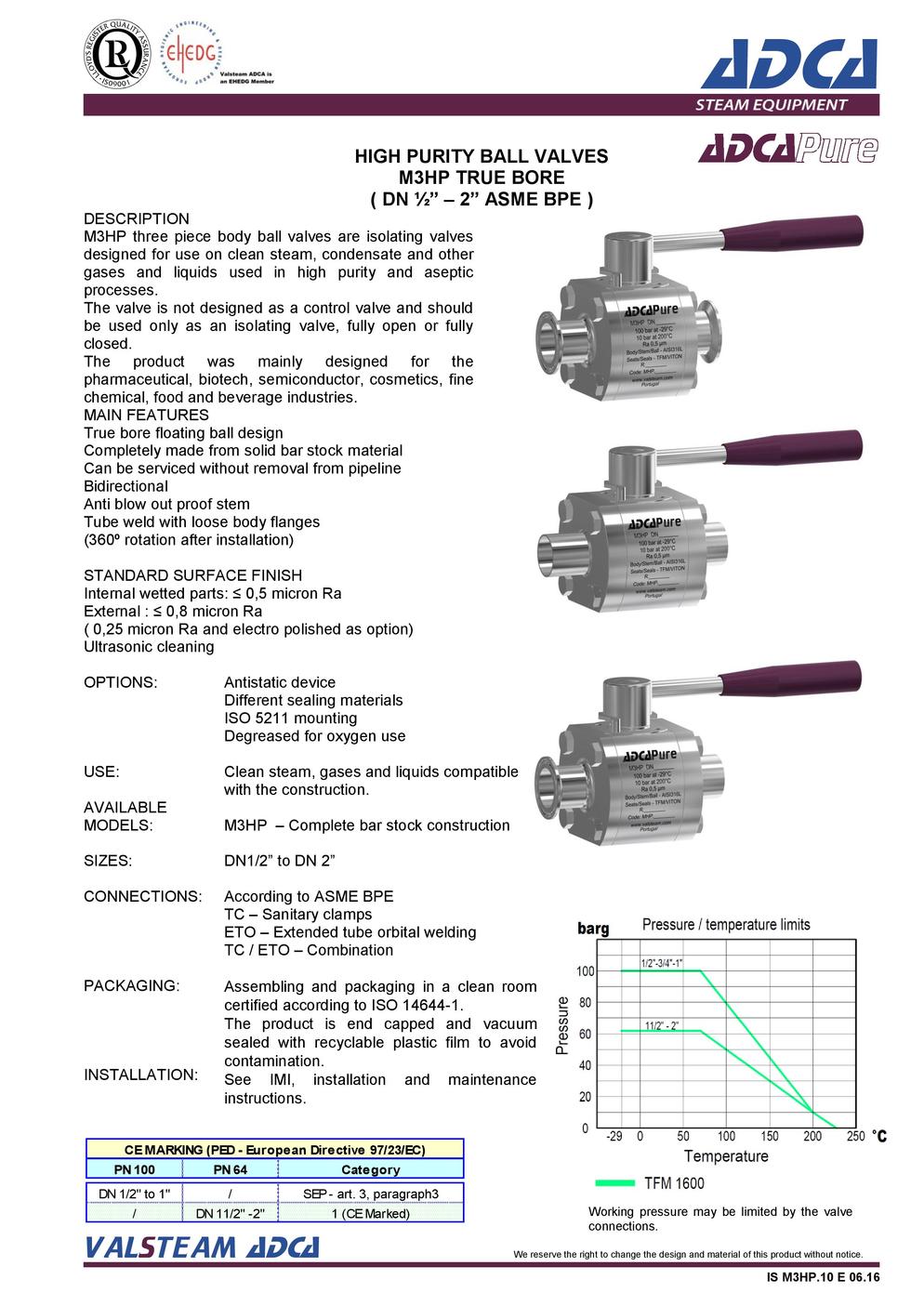

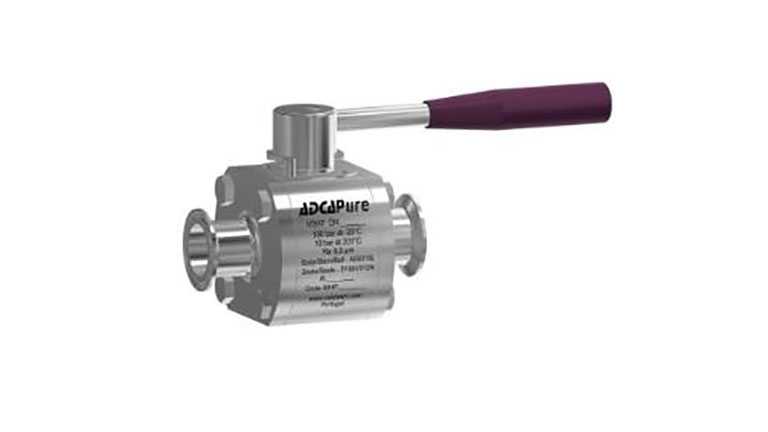

HIGH PURITY BALL VALVES (ASME BPE) DN 1⁄2” – 2”

Model No : M3HP TRUE BORE
Description
M3HP three piece body ball valves are isolating valves designed for use on clean steam, condensate and other gases and liquids used in high purity and aseptic processes.
The valve is not designed as a control valve and should be used only as an isolating valve, fully open or fully closed.
The product was mainly designed for the
pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.
MAIN FEATURES
True bore floating ball design
Completely made from solid bar stock material
Can be serviced without removal from pipeline
Bidirectional
Anti blow out proof stem
Tube weld with loose body flanges
(360º rotation after installation)

STANDARD SURFACE FINISH
Internal wetted parts: ≤ 0,5 micron Ra
External : ≤ 0,8 micron Ra
( 0,25 micron Ra and electro polished as option)
Ultrasonic cleaning

OPTIONS:
Antistatic device
Different sealing materials
ISO 5211 mounting
Degreased for oxygen use

USE: Clean steam, gases and liquids compatible
with the construction.

AVAILABLE MODELS: M3HP – Complete bar stock construction

SIZES: DN1/2” to DN 2”

CONNECTIONS:
According to ASME BPE
TC – Sanitary clamps
ETO – Extended tube orbital welding
TC / ETO – Combination

PACKAGING:
Assembling and packaging in a clean room
certified according to ISO 14644-1.
The product is end capped and vacuum
sealed with recyclable plastic film to avoid
contamination.

INSTALLATION:
See IMI, installation and maintenance
instructions.
