COMPRESSED AIR BALL FLOAT TRAPS (DN40 – DN50)
Model No : FA17/G
Description
FA17/G is a fully automatic ball float trap extremely compact in dimension and light in weight, specially designed for draining water from compressed air lines.
Applications on aftercoolers, separators and compressed air mains.
Connections are screwed or flanged.
MAIN FEATURES
Modulating discharge.
Unaffected by sudden or wide load and pressure changes.
OPTIONS: Horizontal reversible inlet connections.
USE:
Compressed air and non corrosive gas,
compatible with the construction.
AVAILABLE MODELS: FA 17 G
SIZES: DN 11/2” -2”; DN 40 – DN 50.
CONNECTIONS:
Female screwed ISO 7/1 Rp (BS21)
Flanged EN 1092-2 PN16 or ANSI

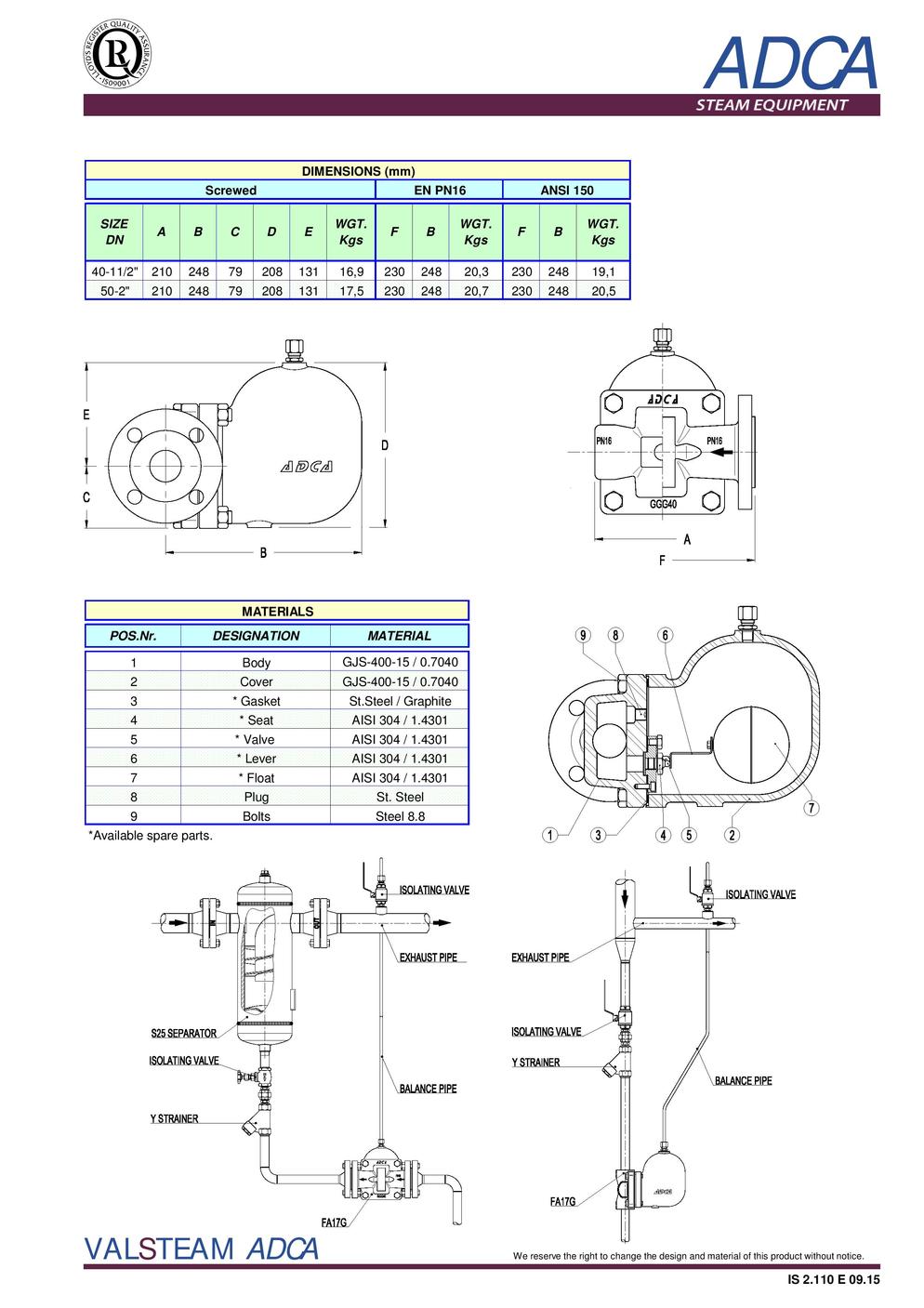

INSTALLATION:
Standard horizontal installation-flow
from right to left (R-L).
Vertical installation with the flow from
top to bottom (V).
See IMI installation and maintenance
instructions.
