WAFER TYPE NON-RETURN VALVE

admin

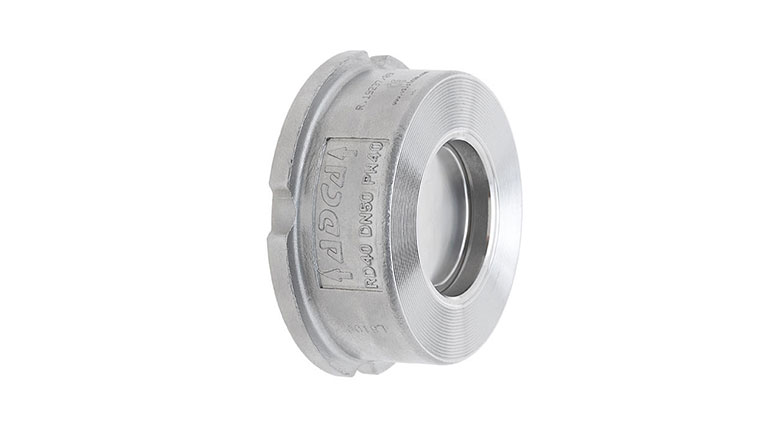

Model No : RD40 (DN15 – DN100)
Description
The RD40 all stainless steel disc check valve has a
compact design and was specially designed for use with
steam and hot condensate.
Connections are flanged (wafer type)

MAIN FEATURES
Low pressure drop.
Simple and compact design.
Overall lengths according to DIN 3202 part 3-K4

OPTIONS: Soft sealing : EPDM (E), NBR (N), VITON
(V), PTFE (T). Inconel springs

USE : Saturated steam, water and other gases (Group 2) compatible with the construction

AVAILABLE MODELS : RD 40
SIZES : DN 15 to DN 100
CONNECTIONS : Sandwiched between flanges
as per EN 1092 or ANSI.

INSTALLATION : Horizontal or vertical installation
See IMI, installation and maintenance instructions.

RATING : PN 25 / PN 40
LIMIT OF OPERATION: As per EN 1092

WAFER TYPE NON RETURN VALVE

admin

Model No : RD40 (DN 125 – DN 200)
Description
The RD40 disc check valve has a compact design and
was specially designed for use with steam and hot
condensate.
Connections are flanged (wafer type)

MAIN FEATURES
Low pressure drop.
Simple and compact design.
Overall lengths according to DIN 3202 part 3-K4

OPTIONS: Soft sealing : EPDM (E), NBR (N), VITON
(V), PTFE (T). Inconel springs

USE : Saturated steam, water and other gases (Group 2) compatible with the construction

AVAILABLE MODELS : RD 40

SIZES : DN 125 to DN 200

CONNECTIONS :
Sandwiched between flanges as per EN 1092 or ANSI.

INSTALLATION : Horizontal or vertical installation.See IMI, installation and maintenance instructions.

RATING : PN 10 / PN 40
LIMIT OF OPERATION: As per EN 1092
